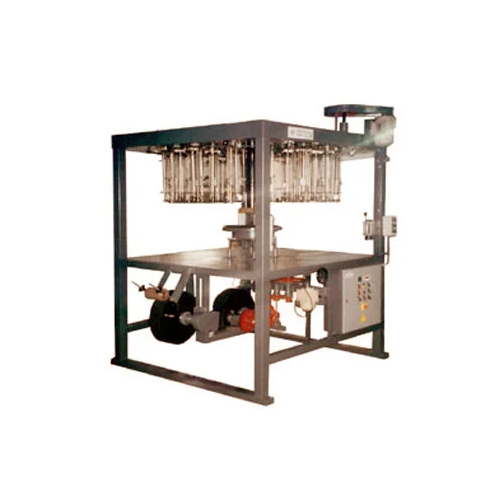

3 Track Packing Braiding Machine

Get a Price/Quote

MOQ : 1 Unit

3 Track Packing Braiding Machine Specification

General Use
Industrial

Automatic
Yes

Knitting Style
Flat

Needle Type
Grooved Needle

Feature
High Speed

Warranty
1 Year

3 Track Packing Braiding Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
7 - 10 Days

Main Domestic Market
All India

About 3 Track Packing Braiding Machine

3 Track Braiding Machine

B & B offers wide range of packing braiding machines for producing rope perfect sq. section. B & B packing braiding machines are capable of braiding a range of fibers from natural fibers such as cotton to kevlar to glass fiber. The spring loaded carrier with bigger size of bobbin is specially designed for holding large volume packages to produce long continuous runs for easier downstream processing.

Features:

3-track packing braider is available from 12 carriers to 24 carriers for producing 4mm to 32mm sq. rope.
Vertical Axis, inverted carriers.
Heat treated braided plate and track.
Heat treated horn gears and horn plate.
Overload motor protection.
Line forward/ reverse jog.
Automatic machine shut off for broken end, empty bobbin.
Integrating sound proofing enclosure.
AC motor with frequency converter for speed adjustment.
